Tile Scroll

Meet the Pixel Tile Scroll module for Divi! Fill a section with rows of image tiles that glide sideways as the visitor scrolls — alternating directions, optional rotation, and a floating content box with your headline and button on top. A show-stopping hero or portfolio wall driven entirely by scroll.

View Demo →

With the Pixel Tile Scroll module you can:

1. Build rows or columns of image tiles from simple image galleries
2. Move the lines on scroll with alternating directions and a configurable move amount
3. Rotate the whole tile grid for a dynamic diagonal look
4. Float a content box (title, description, button) above the tiles, with optional background blur
5. Add an overlay between the tiles and the content

How the module works

The Pixel Tile Scroll is a parent/child module. Each child item holds a gallery of images that becomes one line of tiles. As the visitor scrolls, the lines slide along the chosen axis — odd and even lines start from opposite directions, creating the signature counter-moving effect.

How to add the Tile Scroll module

1. Open a page with the Divi Visual Builder
2. Click the + (Add New Module) button
3. Search for Pixel Tile Scroll and click it to insert the module
4. Add a child item per tile line and fill its Images gallery

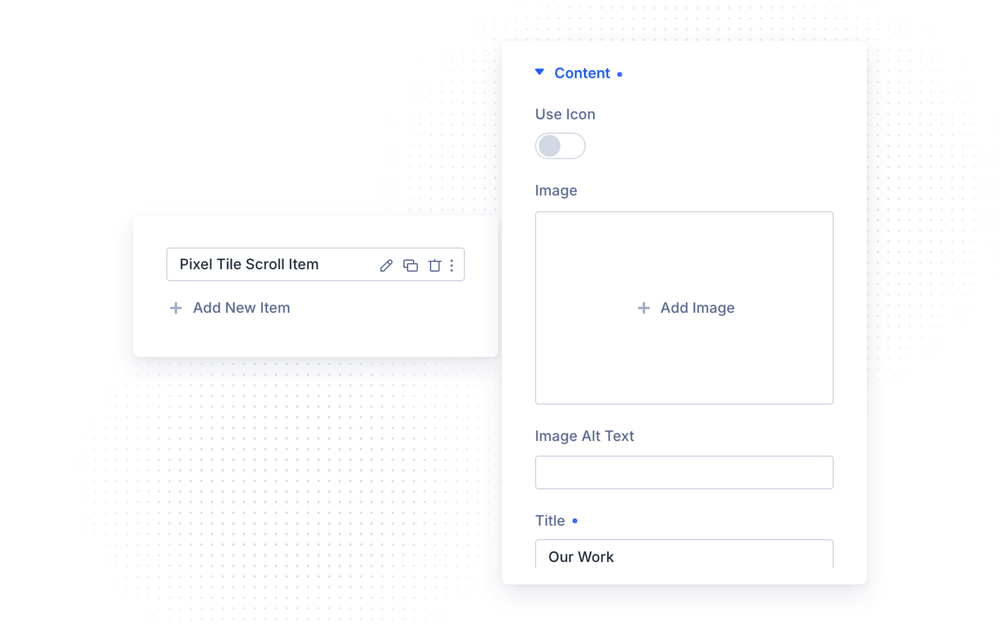

Content

The parent Content group holds the floating content box: Title, rich-text Description and an optional Button with its own link.

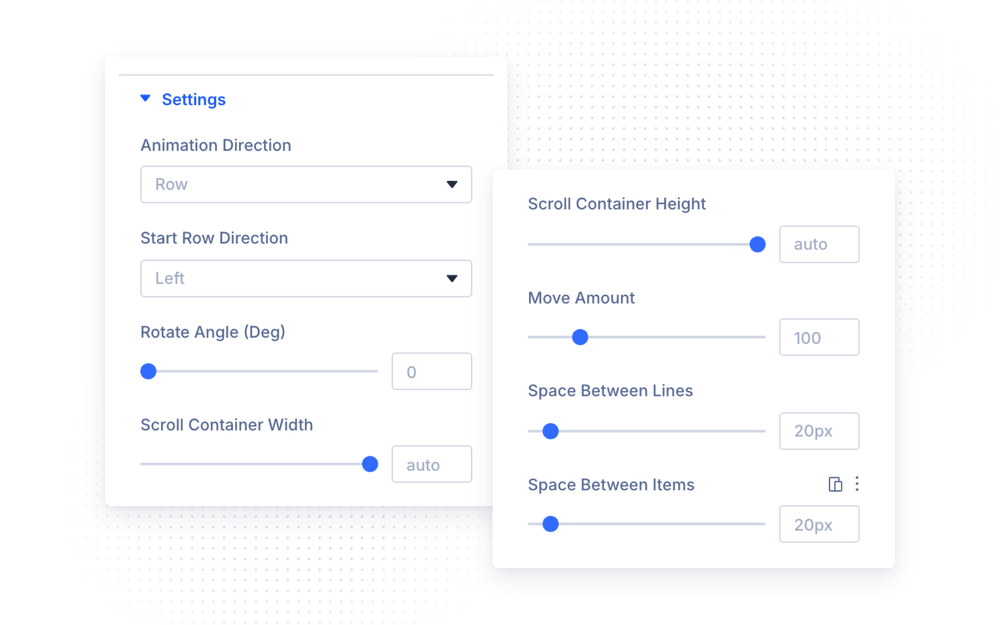

Settings

The Settings group controls the tile motion and layout:

1. Animation Direction — tiles move in Rows (horizontal) or Columns (vertical)
2. Start Row Direction / Start Column Direction — which way the first line moves (left/right, top/bottom); following lines alternate
3. Rotate Angle — rotate the whole tile grid (0–360°) for diagonal compositions
4. Move Amount — how many pixels a line travels while scrolling one full screen (default 100)
5. Scroll Container Width / Height — the visible stage size
6. Space between Lines / Space between Items — the gaps in the tile grid (default 20px)

Overlay

Enable Use Overlay to place a color or gradient overlay between the tiles and the content box — an easy way to keep the text readable over busy imagery.

Design Settings

1. Content Container — Content Width, Content Height and Background Blur (0–30px) for a frosted-glass panel behind the text
2. Content Image & Icon — icon color, background, size and alignment, plus a Circle Icon toggle
3. Content Text / Content Button — typography and full button styling
4. Each child item adds Image styling and Sizing for its tile line

The module also supports the standard Divi groups — Sizing, Spacing, Border, Box Shadow, Filters, Transform and Animation.

NOTE: The effect lives on scroll distance. Give the section enough height (Scroll Container Height) and keep Move Amount moderate — very high values make tiles fly past too quickly on short pages.

Design Ideas

1. Portfolio hero — three rows of project shots, Move Amount 100, a centered content box with 10px Background Blur and a “See Our Work” button.
2. Diagonal wall — Rotate Angle 10–15° with an overlay gradient and white heading for a modern agency landing.
3. Vertical showcase — Animation Direction Column with tall images for a photography-style mosaic.
